Pilot Bearing and Bushings, Clutch Pilot Bearing, Roller, Steel, Natural Finish, 1.704 in. OD, 0.591 in. ID, 0.512 in. Width, Chevy, GMC, Each

ntake Manifolds, Holley EFI, Coyote Hi-Ram, Throttle Body Injection, Standard Deck, 93 Round Bore, Aluminum, Black, Ford, 5.0L, Modular, Each

-BP3021CTCK RT 55904
-KIT,FORD SMALL BLOCK FRONT DRIVE KIT -
WITH POWER STEERING
-TRANSMISSION,TREMEC TKX-600 MANUAL -
ALUMINUM BELL.
READY TO RUN

Chevrolet Performance LS3 6.2L 376 C.I.D 495 HP Engine Assemblies
The hot new small block V8 in the GM lineup is the hyper-aggressive LS3 6.2L 376 c.i.d. 495 hp engine assembly from Chevrolet Performance. It offers a high-revving 376 c.i.d. combination that represents generations of small block V8 development and engineering. Not only is the LS3 an amazing engine in its stock configuration, but with those high-flowing rectangular port cylinder heads, the LS3 is loaded with potential. To tap into this, the engineers at GM Performance Parts offer you the LS376/480—an LS3 with an upgraded camshaft that boosts power by a whopping 50 hp!

The LS376/480 comes with the same great features as the LS3 crate engine. The bottom-end includes a 6-bolt aluminum block, nodular crank, high performance rods, and 10.7:1 pistons. The heads are high-flowing rectangular-port L92 units that have been upgraded with high-revving, hollow-stem valves. The same EFI intake manifold feeds the hungry engine, while 1.7:1 roller rockers work with the upgraded camshaft.

The GM Performance Parts engineers picked the LS Hot Cam (P/N 88958733) to take the LS3 to the next level. This cam specs out with .525 in. intake and exhaust valve lift. Duration (at .050 in.) is 219 degrees intake and 228 degrees exhaust, which allows for a dramatic increase in power. The engine will idle and cruise just like an LS3, but the power increase is there whenever you need it. A 14 in. automatic flexplate is included.

Specifications:

* Engine type: LS Series Gen IV small block V8
* 495 hp at 6,200 rpm, 473 lbs.-ft. torque at 5,000 rpm
* Displacement: 376 cubic inch (6.2L)
* Bore x Stroke (in.): 4.06 x 3.62 (103.25 x 92mm)
* Block: Cast-aluminum with 6-bolt, cross-bolted main caps
* Crankshaft: Nodular iron
* Connecting rods: Powdered metal
* Pistons: Hypereutectic aluminum
* Camshaft type: Hydraulic roller
* Valve lift: .525 in. intake / .525 in. exhaust
* Camshaft duration (at .050 in): 219 degrees intake / 228 degrees exhaust
* Cylinder heads: Aluminum L92 style port; as cast with 68cc chambers
* Valve size: 2.165 int / 1.59 exhaust
* Compression ratio: 10.7:1
* Rocker arms: Investment-cast, roller trunnion
* Rocker arm ratio: 1.7:1
* Recommended fuel: 92 octane
* Maximum recommended RPM: 6600
* Reluctor wheel: 58X
* Balanced: Internal

Engine Management System, 480 HP LS3 Engine Controller, Chevy, 6.2L, Kit

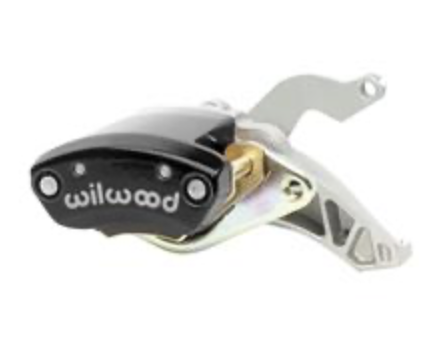

Pistons
Piston Count 1
Piston Area (in²) 1.11
Piston Type Aluminum
Dust Boot Yes
Rotor Dimensions
Rotor Width (in) 1.10
Rotor Diameter(in) 14.00
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Cast Aluminium
Weight(Lbs) 3.8
Colors & Finish
Color Black
Finish Black Powder Coat
Mounting
Mount Center(in) 4.75
Mount Position
Mount Side Right Hand
Mount Type Floating
UPC Number
UPC 889545088830

Pistons
Piston Count 1
Piston Area (in²) 1.11
Piston Type Aluminum
Dust Boot Yes
Rotor Dimensions
Rotor Width (in) 1.10
Rotor Diameter(in) 14.00
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Duty Rating & Material
Material Cast Aluminium
Weight(Lbs) 3.8
Colors & Finish
Color Black
Finish Black Powder Coat

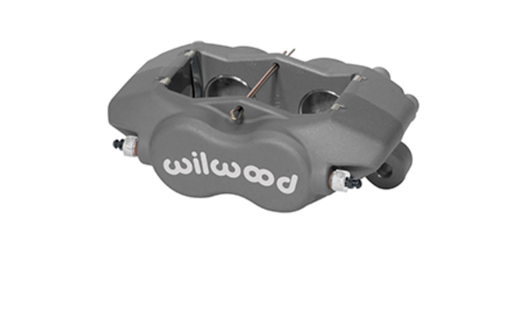

Pistons
Piston Count 4
Piston Area (in²) 4.80
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 1.10
Rotor Diameter(in) 13.06
Pad Dimensions
Pad Area (in²) 6.36
Pad Volume (in³) 2.1
Duty Rating & Material
Material Forged Aluminium
Weight(Lbs) 3.6
Colors & Finish
Color Anodize
Finish Type III Anodize

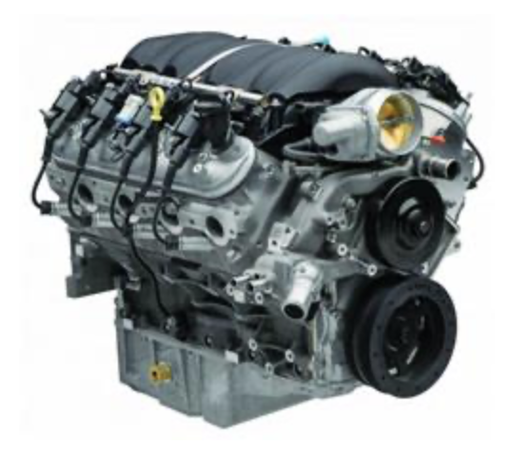

Chevrolet Performance LS3 6.2L 376 c.i.d. engine assemblies use an impressive 10.7:1 compression ratio to put out 525 hp at 6,200 rpm and 486 lbs.-ft. of torque at 5,200 rpm. They feature a cast aluminum block with a nodular iron crankshaft, powdered metal connecting rods, and hypereutectic pistons. The steel hydraulic roller camshaft has a .525 in. intake and .525 in. exhaust valve lift, with a 226 degree intake and 236 degree exhaust valve duration at .050 in. cam lift.
Assemblies also include:

* Ignition coil packs
* Spark plug wires
* Spark plugs
* Intake manifold
* Fuel injectors
* Throttle body
* Exhaust manifolds
* 14 in. flexplate
* Front timing cover
* Aluminum water pump
* Harmonic balancer
* Passenger side right hand dipstick and tube

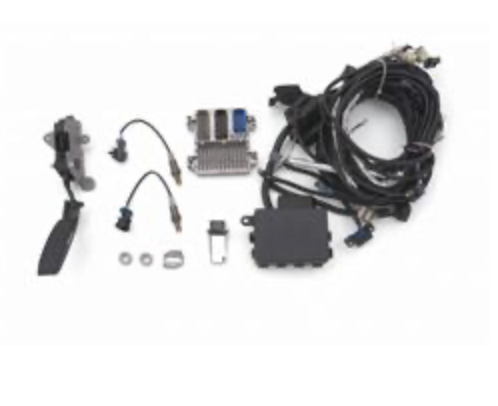

Engine Management System, LS 376/525 HP Engine Controller, Chevy, Kit

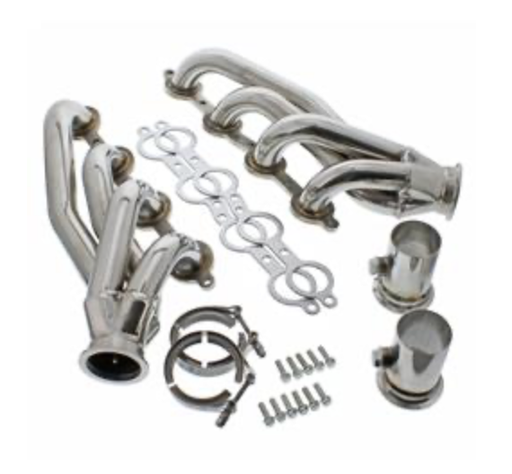

Headers, Shorty, LS Swap, Conversion, Stainless, Polished, 1 5/8 in. Primary, 2.5 in. Collector, Chevy, 4.8, 5.3, 5.7, 6.2L, Pair

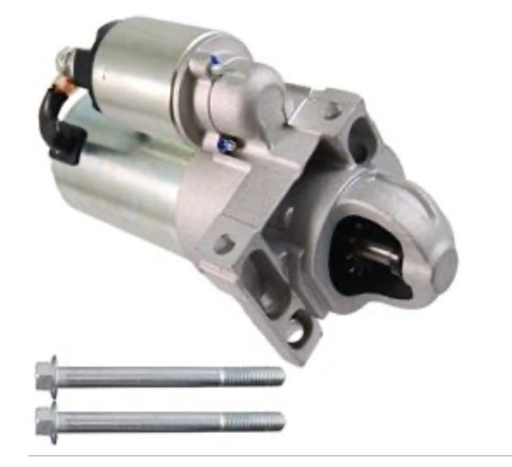

Starter, Delco Style, Inline, 168-tooth, Standard Rotation, Cadillac, Chevrolet, Pontiac, Each
